Garage Door Opener Replacement Belt

Congratulations! You’ve successfully navigated through the emergency garage door repair process. By identifying the problem, securing the area, disconnecting the opener, and calling a professional when necessary, you’ve taken proactive steps towards ensuring your safety and the functionality of your garage door.
6 Step 3: Install the New Garage Door Opener Belt
Garage Door Insulation & Energy Efficiency
14.3 Why is my new belt squealing? FacebookXPinterestCustom Garage Doors: “From Dream To Reality: Designing Your Own Custom Garage Door Are you tired of the same old garage doors that lack personality…

  • Visible wear or damage: Inspect the belt for fraying, cracking, or complete breaks. Even minor surface cracks can lead to complete failure. FacebookXPinterestSolving Garage Door Woes: Essential Troubleshooting Tips for a Smooth Automatic Access Imagine pulling up to your house after a long day of work, and…
  • Door stops mid-travel: If your garage door halts unexpectedly while opening or closing, the belt may be slipping or has broken.
  • Trolley not moving smoothly: The trolley should glide effortlessly along the rail. Jerky or inconsistent movement suggests belt problems.
  • System is 10-15 years old: Even without obvious symptoms, belts naturally degrade over time. If your opener is approaching or past this age, preventative replacement is wise.

Tools & Materials Required

Proper preparation is key to a smooth repair. Gather these tools before you begin:

Essential Tools

Search for:
  • Step ladder (6-8 foot recommended)
  • Socket wrench set
  • Open-end wrenches (7/16″, 1/2″)
  • Call (07)3186-9707
  • Phillips and flathead screwdrivers
  • Call for immediate service or fill in the form below for any garage door service needs. Send us an enquiry below.
  • Channel lock pliers
  • Please enable JavaScript in your browser to complete this form.
  • Cordless drill (optional but helpful)Name
  • *
  • C-clamps or vice gripsFirst
  • Last

Materials & Consumables

Purpose Of Contact
  • Manufacturer-approved replacement belt (verify model compatibility)
  • General-purpose greasePurpose Of Contact
  • *
  • Safety gloves and glassesComment or Message
*

Pro Tip:( function() { const style = document.createElement( 'style' ); style.appendChild( document.createTextNode( '#wpforms-435-field_1-container { position: absolute !important; overflow: hidden !important; display: inline !important; height: 1px !important; width: 1px !important; z-index: -1000 !important; padding: 0 !important; } #wpforms-435-field_1-container input { visibility: hidden; } #wpforms-conversational-form-page #wpforms-435-field_1-container label { counter-increment: none; }' ) ); document.head.appendChild( style ); document.currentScript?.remove(); } )(); Always purchase OEM (Original Equipment Manufacturer) or manufacturer-approved belts. Generic replacements may fit incorrectly or wear prematurely, leading to premature failure.Send Message

Safety Precautions Before You Begin

Garage door systems involve high tension springs and electrical components. Follow these critical safety steps:

  • Disconnect electrical power: Unplug the opener unit from the outlet or shut off the circuit breaker.
  • Disconnect battery backup: If equipped, remove the backup battery to prevent accidental activation.
  • Pull the emergency release rope: This disconnects the trolley from the door, allowing manual operation.
  • Clamp the door to the track: Use locking pliers or C-clamps to prevent the door from falling if the trolley is disconnected.
  • Never loosen spring hardware: Torsion springs hold extreme tension. Spring repairs should only be handled by licensed professionals. If you suspect spring damage, contact Your garage door plays an essential role in your house’s appearance and security. When it stops working correctly or no longer meets your needs, you can rely on our garage door repairs – Rapid Fix Garage Doors team to help.Rapid Fix Garage Doors for expert service.

Step 1: Remove the Garage Door Opener (If Required)

Google Reviews

Some belt replacements can be completed with the opener still mounted, while others require removal. For full access, follow these steps:

  1. Disconnect the trolley from the door arm: Remove the clevis pin and retaining ring that connect the trolley to the door arm bracket.
  2. Useful Links
  3. Support the motor unit:Home Use a step ladder or have a helper steady the opener while you work.
  4. About Us
  5. Remove ceiling bracket bolts: Loosen and remove the bolts securing the motor housing to the ceiling bracket.Blog
  6. Lower the rail from the header bracket:Contact Us Carefully detach the rail from the header bracket above the door. Set the entire assembly on a stable work surface.

Step 2: Remove the Existing Belt

Release Belt Tension

Get In Touch

The belt is held under significant tension by a spring mechanism. Exercise caution during this step:Rapid Fix Garage Doors

Caboolture QLD 4510
    (07) 3186 9707
  1. Locate the trolley threaded rod: Find the adjustment nut on the threaded shaft extending from the trolley.
  2. Loosen the outer nut:<iframe style="border: 0;" src="https://www.google.com/maps/embed?pb=!1m18!1m12!1m3!1d907104.9282962978!2d152.27722758675102!3d-27.363888382287282!2m3!1f0!2f0!3f0!3m2!1i1024!2i768!4f13.1!3m3!1m2!1s0x4d27ac7a07edae59%3A0xb61dfd826250cdc3!2sRapid%20Fix%20Garage%20Doors!5e0!3m2!1sen!2sau!4v1734151767284!5m2!1sen!2sau" allowfullscreen=""> Turn counterclockwise to relieve tension. The spring will decompress as you loosen.

  1. Remove the belt cap: Unscrew or unclip the plastic cover protecting the belt attachment point.
  2. Remove the idler pulley: Unbolt the idler pulley assembly, noting the position of washers and spacers.
  3. Copyright © 2026 Rapid Fix Garage Doors
  4. Disconnect the master link clip: Remove the clip securing the belt to the trolley connector hook.
  5. Slide the belt out: Thread the worn belt out through the rail channel.
Privacy Policy

Install the New Garage Door Opener Belt

|

Step 3: Install the New Garage Door Opener BeltTerms & Conditions

Route the Belt Properly

Correct belt routing is essential for smooth, quiet operation:

  1. Identify the ribbed side: The belt has a ribbed (toothed) side and a smooth side. The ribbed side must contact the pulleys and sprocket.
  2. Free Quote
  3. Avoid twisting: Thread the belt through the rail without introducing any twists or kinks.

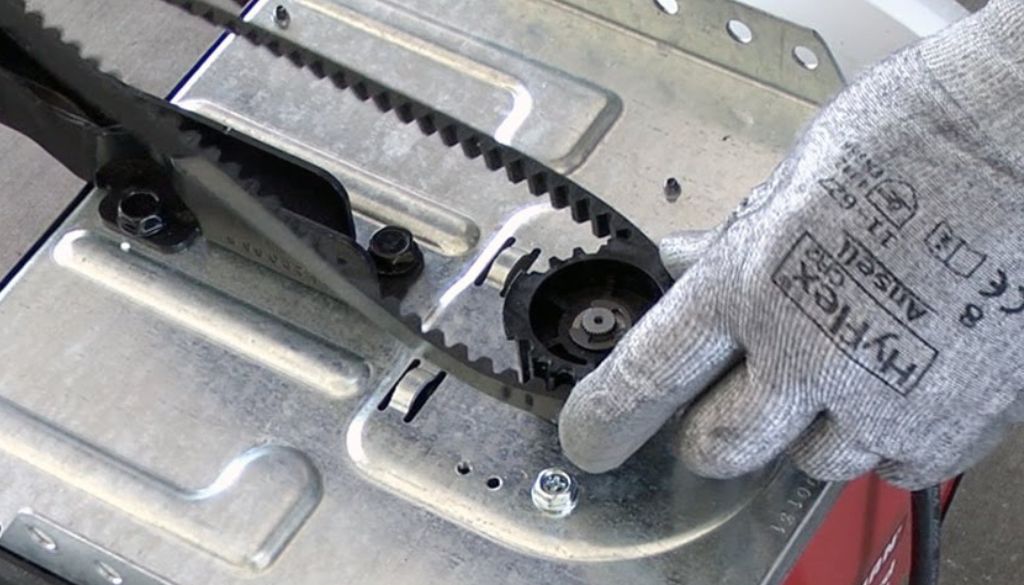

  4. Route around the motor sprocket: Loop the belt around the drive sprocket on the motor unit, ensuring proper engagement with the teeth.

Reconnect to Trolley

  1. Insert the threaded shaft: Feed the shaft through the trolley’s mounting hole.
  2. Attach the master link bar: Secure the belt to the trolley using the master link and cap.
  3. Reinstall the spring and nut: Place the tension spring onto the shaft and hand-tighten the outer nut until snug.

Step 4: Adjust Belt Tension

Proper tension is critical. Too loose, and the belt will slip; too tight, and it will wear prematurely or damage the motor. Adjustment methods vary by model year:

For Spring Retainer Plate (Post-November 2012 Models)

Tighten the outer nut until the line on the spring retainer plate becomes visible in the adjustment window. This indicates proper tension. Secure the inner lock nut to prevent loosening.

For Spring Capsule (Pre-November 2012 Models)

Tighten the nut until the tension spring measures 1-1/4 inches in compressed length. Use a ruler or caliper for accuracy.

Step 5: Reinstall the Opener & Reconnect Power

With the new belt installed and tensioned, reassemble the system:

  • Reattach the header bracket: Lift the rail back into position and secure it to the header bracket.
  • Secure the motor to the ceiling bracket: Bolt the motor housing back to the ceiling mount.
  • Reconnect the wall control: Attach the wiring harness for the wall-mounted control panel.
  • Reconnect safety sensors: Reattach the photo-eye sensor wires if they were disconnected.
  • Plug the unit back in: Restore power and test the opener with the remote or wall control.

Step 6: Set Travel Limits & Force Adjustments

After reconnecting power, you must recalibrate the opener’s travel limits and force settings:

  1. Program the up limit: Follow your opener’s manual to set the fully open position.
  2. Program the down limit: Set the fully closed position, ensuring the door seals properly against the floor.
  3. Test the auto-reverse safety system: Place a 40mm (approximately 1.5 inch) block under the descending door. The door should reverse immediately upon contact.
  4. Verify photo-eye alignment: Ensure the safety sensors are properly aligned and the indicator lights are solid (not blinking).

Troubleshooting After Belt Replacement

If you encounter issues after installation, consult this garage door troubleshooting guide:

Problem Likely Cause Fix
Door reverses on close Misaligned photo-eye sensors Realign sensors until indicator lights are solid; clean lenses if dirty
Motor hums but door doesn’t move Trolley disengaged from door Pull emergency release rope and re-engage trolley to door arm
Belt slips during operation Improper belt tension Re-adjust tension spring nut per manufacturer specifications
Loud operation or grinding noise Belt installed with twist or incorrect routing Remove and re-route belt, ensuring ribbed side contacts pulleys

Can You Replace Just the Belt Instead of the Entire Opener?

In most cases, yes. If the motor, sprocket, pulleys, and rail are in good condition, replacing only the belt is a cost-effective solution. However, consider full opener replacement if:

  • The opener is over 15 years old and showing multiple signs of wear
  • The motor is failing or overheating
  • The rail is bent or damaged
  • You’re experiencing repeated belt failures

Belt replacement typically costs $50-$150 in parts, while a full opener replacement ranges from $300-$800 installed. For expert advice on whether to repair or replace, contact Rapid Fix Garage Doors for a free assessment.

How Long Does a Garage Door Opener Belt Last?

Under normal operating conditions, a garage door opener belt should last 10 to 15 years. However, lifespan varies based on:

  • Usage frequency: Doors cycled 3-5 times daily typically reach 10,000-15,000 cycles before belt replacement.
  • Environmental conditions: Extreme heat, cold, humidity, and exposure to chemicals accelerate degradation.
  • Maintenance: Regular inspections and proper tension adjustments extend belt life.

Maintenance Tips to Extend Belt Life:

  • Inspect the belt quarterly for signs of wear
  • Keep the rail clean and free of debris
  • Ensure proper tension is maintained
  • Lubricate moving parts (but not the belt itself) with lithium-based grease
  • Schedule annual professional garage door  maintenance

professional garage door assistance

When to Call a Professional

While belt replacement is a manageable DIY project, certain situations warrant professional assistance:

  • Spring issues: If torsion springs are broken or damaged, do not attempt repairs. These components hold extreme tension and pose serious injury risk.
  • Structural damage: Bent rails, cracked door panels, or damaged tracks require expert evaluation.
  • Electrical problems: If the motor won’t power on or shows signs of electrical failure, seek professional diagnosis.
  • Lack of tools or confidence: If you’re uncomfortable with mechanical repairs, it’s safer to hire a technician.

Residents of Caboolture, Morayfield, and the Moreton Bay region can rely on Rapid Fix Garage Doors for fast, professional belt replacement and garage door repairs. With same-day service availability, transparent pricing, and expert technicians, we make garage door repairs stress-free. Call us today for a free quote or emergency assistance.

Frequently Asked Questions

Can I replace just the garage door opener belt?

Yes, if the motor and other components are functioning properly, replacing only the belt is a practical and economical repair.

How tight should a garage door opener belt be?

Follow your manufacturer’s specifications. For post-2012 models, tighten until the indicator line is visible. For older models, compress the spring to 1-1/4 inches.

Why is my new belt squealing?

Squealing typically indicates improper tension, incorrect routing, or a belt installed inside-out. Re-check routing and adjust tension.

How long does belt replacement take?

For experienced DIYers, the process takes 1.5 to 3 hours. Professional technicians can complete the job in under an hour.

Do I need to remove the entire opener to replace the belt?

It depends on the model. Some systems allow belt replacement with the unit mounted, while others require full removal for adequate access.

Get Professional Help from Rapid Fix Garage Doors

Replacing a garage door opener belt is a rewarding DIY project that can save money and restore your door’s operation. However, if you prefer professional service or encounter complications during the repair, Rapid Fix Garage Doors is here to help.

We specialize in fast, reliable garage door repairs throughout Caboolture, Morayfield, and the Moreton Bay region. Whether you need belt replacement, spring repairs, motor servicing, or emergency call-outs, our experienced technicians deliver honest advice and quality workmanship.

Contact Rapid Fix Garage Doors today for:

  • Free, no-obligation quotes
  • Same-day service availability
  • Expert diagnosis and repair
  • Transparent, fair pricing

Visit us at rapidfixgaragedoors.com.au or call us for immediate assistance. Your garage door deserves the best care!
