Your garage door opener works because of one often-overlooked component: the trolley, also known as the carriage. This small but critical part connects the opener motor to the door itself via the drive arm, translating the motor’s rotational energy into the linear movement that lifts and lowers your door.
When the trolley wears out or breaks, your door may refuse to move, operate noisily, or become stuck mid-cycle. Understanding how to replace a garage door trolley safely — or when to hand the job over to a professional — can save you time, money, and a potentially dangerous situation.
In this guide, the team at Rapid Fix Garage Doors walks you through everything you need to know: signs of a failing trolley, tools required, step-by-step replacement instructions, troubleshooting tips, and maintenance advice to keep your new trolley running smoothly.
Signs You Need a New Garage Door Trolley
Not every garage door problem requires a full opener replacement. Before spending hundreds of dollars, check whether a simple trolley swap will solve your issue. Here are the most common warning signs:
- The door doesn’t open or close, even though the opener motor runs
- The trolley carriage moves along the rail but the door stays put
- You notice visible cracks, chips, or metal fatigue on the trolley assembly
- The door operates unevenly, dips to one side, or jerks during movement
- There are loud grinding, clicking, or scraping noises during operation
- Your opener is an older model and the trolley assembly appears worn or corroded
If you’re also experiencing spring or cable issues alongside trolley symptoms, you may have a more complex problem. For combined faults, see our guide on garage door spring replacement before proceeding with a DIY trolley fix.
Tools and Safety Equipment You’ll Need
Gathering the right tools before you start prevents mid-job frustration and keeps the project safe.
Tools:
- Socket and ratchet set (8–17 mm range)
- Needle-nose pliers (for removing cotter pins)
- Flathead and Phillips head screwdrivers
- A sturdy ladder rated to safely support your weight at ceiling height
- Silicone spray lubricant or white lithium grease for reassembly
- Replacement trolley compatible with your opener brand and drive type
Safety Precautions — Read Before You Start:
Garage doors are among the heaviest moving objects in any home. Tensioned springs store enormous energy and can cause serious injury or death if handled incorrectly. Follow these safety steps without exception:
- Disconnect power: Unplug the opener from the power outlet or switch off the circuit breaker
- Pull the emergency release: Disengage the trolley from the drive mechanism using the red manual release cord
- Clamp the door: Use locking pliers or a C-clamp on the door track to prevent accidental movement
- Never touch the springs directly: If springs appear damaged or are under tension, call a professional immediately
- Work with a helper: Having someone hold or steady the door while you work at height reduces the risk of accidents
If you are unsure at any stage, stop work and contact the Rapid Fix Garage Doors team in Caboolture for same-day assistance across the Moreton Bay Region.
Step-by-Step Garage Door Trolley Replacement
Step 1: Disconnect Power and Release the Trolley

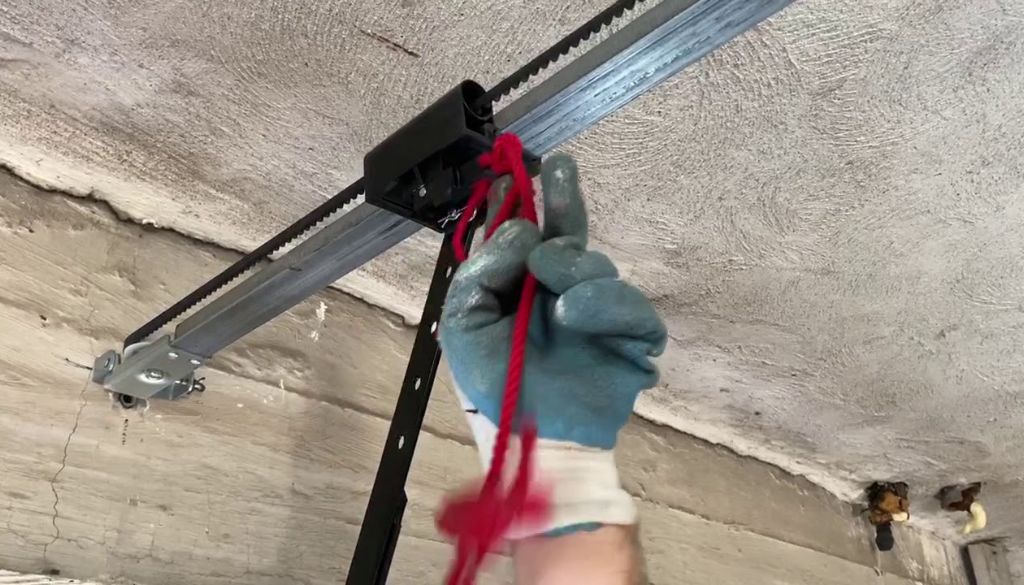

Begin by unplugging the garage door opener motor unit from the power outlet. If hardwired, switch off the dedicated circuit breaker. Next, locate the red emergency release cord hanging from the trolley and pull it firmly downward and toward the rear of the garage. This disengages the trolley from the drive chain, belt, or screw, allowing the door to move freely by hand.
Lower the door to the fully closed position manually and secure it with a C-clamp or locking pliers on the door track just above one of the rollers. This prevents the door from moving while you work.
Step 2: Remove the Old Trolley
Set up your ladder so you can comfortably reach the trolley assembly on the rail. The trolley is located roughly in the middle of the opener rail and connects to the door arm — a metal bar running from the trolley down to the top panel of your door.
Use needle-nose pliers to remove the cotter pin where the door arm connects to the trolley. Slide the clevis pin out to free the arm. Some models use a bolt rather than a pin — consult your opener’s manual if unsure (refer to manufacturer documentation from brands such as Merlin, B&D, or Chamberlain). Once the arm is detached, slide the trolley along the rail toward the motor end until it clears the rail entirely.
Step 3: Install the New Trolley
Before installing, verify the replacement trolley is compatible with your opener’s drive type — chain drive, belt drive, or screw drive trolleys are not interchangeable. Check your opener’s model number against the replacement part specifications.
Slide the new trolley onto the rail from the motor end, positioning it roughly in the centre of the rail. Reattach the door arm by inserting the clevis pin through the arm and trolley bracket, then secure with the new cotter pin. Ensure the pin is fully seated and cannot back out during operation.
Re-engage the trolley with the drive system by pulling the emergency release cord in the opposite direction (toward the opener motor) until you hear or feel it click back into the drive mechanism.
Step 4: Test the Garage Door
Remove the C-clamp from the door track. Plug the opener back in or restore power at the breaker. Using your wall button or remote, run a complete open-and-close test cycle while observing the trolley’s movement along the rail.
The door should travel smoothly and quietly without hesitation, jerking, or stopping prematurely. If the door reverses before fully opening or closing, you may need to adjust the opener’s limit and force settings — refer to your opener manual for instructions. For noisy operation, apply a thin coat of silicone spray or white lithium grease to the trolley and the full length of the rail.
Troubleshooting Common Issues After Trolley Replacement
| Issue | Likely Cause | Fix |
|---|---|---|
| Door won’t open | Trolley not engaged | Pull manual release cord and re-latch trolley |
| Trolley jams on rail | Rail obstruction or bent rail | Clean track, inspect and straighten rails |
| Door reverses mid-cycle | Limit or force settings misaligned | Adjust opener force and limit settings |
| Noisy operation | Dry trolley or misalignment | Lubricate and realign trolley on rail |
| Trolley moves, door doesn’t | Broken arm or pin connection | Inspect cotter pin and door arm connection |
Persistent noise issues after trolley replacement are often related to rollers. For a complete diagnosis, read our guide on garage door roller replacement, which covers common roller faults that can mimic trolley problems.
When to Call a Professional
DIY trolley replacement is well within reach for homeowners comfortable with basic mechanical work. However, there are situations where calling in a licensed technician is the safer and smarter choice:
- Your trolley replacement does not resolve the door fault — indicating a deeper mechanical or electrical issue
- The door rail is bent, cracked, or misaligned beyond simple adjustment
- You identify broken or damaged torsion or extension springs — these are under extreme tension and require specialist tools
- Cables appear frayed, snapped, or incorrectly wound on the drum
- The opener logic board or motor shows signs of electrical failure
- The door is unusually heavy (some commercial or custom doors require professional handling at all times)
Rapid Fix Garage Doors provides fast, same-day garage door repairs across Caboolture, Morayfield, and the broader Moreton Bay Region. Our technicians carry replacement parts for all major brands including Merlin, B&D, ATA, and Chamberlain, and provide honest, upfront pricing with no hidden costs. Get a free quote at rapidfixgaragedoors.com.au
Maintenance Tips to Extend the Life of Your New Trolley
A new trolley is only as good as the maintenance routine behind it. Follow these simple practices to maximise the lifespan of your replacement part and prevent costly future repairs:
- Lubricate the trolley and full length of the rail with silicone spray or white lithium grease every six months — avoid WD-40, which attracts dust and dries out quickly
- Inspect the cotter pin and clevis pin at the door arm connection every three to six months and replace immediately if worn or bent
- Test the manual release cord every three months to ensure it disengages cleanly in an emergency
- Check and adjust the opener’s force and limit settings annually, or after any significant temperature change
- Clean the rail and trolley channel with a dry cloth to remove dust and debris before lubricating
For a complete seasonal maintenance routine, bookmark our Garage Door Maintenance Checklist for Australian Homeowners — designed specifically for Queensland’s climate and conditions.
Frequently Asked Questions
How long does it take to replace a garage door trolley?
For a homeowner with the right tools and basic mechanical confidence, a garage door trolley replacement typically takes 30 to 60 minutes. First-timers should allow up to 90 minutes to work safely and check each step carefully.
Can I reuse my old garage door trolley?
It is not recommended. If the trolley has reached the point of failure — visible cracking, worn rollers, bent brackets, or metal fatigue — reusing it creates a risk of the same fault recurring shortly after. Replacement trolleys are low-cost parts and the labour to reinstall a failed trolley a second time far outweighs the saving.
What type of trolley fits my garage door opener?
Trolleys are drive-type specific: chain drive, belt drive, and screw drive systems each use a different trolley design. Check the model number on your opener motor unit (usually on a label on the side or rear of the unit) and cross-reference it with the manufacturer’s parts list. Merlin, B&D, Chamberlain, and ATA all publish parts compatibility guides on their websites.
Is it safe to replace the garage door trolley myself?
Yes, provided you follow all safety precautions: disconnect power, engage the manual release, clamp the door, and avoid touching the springs. If your door uses torsion springs — the horizontal spring mounted above the door — we strongly recommend leaving any work near the springs to a licensed technician. For belt or chain drive openers with intact springs, trolley replacement is a manageable DIY task.
My opener is old. Should I replace the trolley or the whole opener?
If your opener is more than 10 to 15 years old, replacing just the trolley may offer only a short-term fix. Older openers often have multiple worn components and may lack modern safety features. Rapid Fix Garage Doors can assess whether a full opener upgrade makes more financial sense — contact us for a free, no-obligation quote at rapidfixgaragedoors.com.au.
How do I know if my trolley is belt drive or chain drive?
Look at the drive rail running from the motor to the door. A chain drive uses a metal link chain — similar to a bicycle chain — running along the rail. A belt drive uses a flat rubber or fibreglass-reinforced belt. Screw drive systems use a threaded steel rod. If you are still unsure, the opener brand and model number will confirm the drive type.
